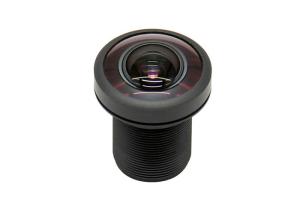

1/2.3" 2.9mm F1.8 13Megapixel M12x0.5 Mount 154degree wide angle lens for IMX078/OV4689

Name: 123quot 29mm F18 13Megapixel M12x05 Mount 154degree wide angle lens for IMX078OV4689
Brand: CCOM LENS
Price: 1 USD

Wholesale 1/2.3" 2.9mm F1.8 13Megapixel M12x0.5 Mount 154degree wide angle lens for IMX078/OV4689 from china suppliers

Place of Origin : China

Model Number : 123029MP 123029MPF

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

MOQ : 100pcs

Video Lens : M12 Mount Board Lens

Resolution : 13MP

F.O.V.(D*H*V) : 1/2.3”: 154°x133°x73°, 1/2.7”: 131°x113°x63°, 1/3”: 115°x99°x55°

Constructure : 8G/8G+IR

Contact Now

1/2.3" 2.9mm F1.8 13Megapixel M12x0.5 Mount 154degree wide angle board lens, 2.9mm 13MP s mount cctv lens for IMX078

Model 123029MPF
IMAGE FORMAT 1/2.3"
FOCAL LENGTH 2.90mm
F.O.V (DxHxV) 1/2.3”: 154°x133°x73°, 1/2.7”: 131°x113°x63°, 1/3”: 115°x99°x55°
RESOLUTION 13MP
APERTURE F1.8
TV DISTORTION <-18%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m
M.B.F. 5.85mm
T.T.L. 26.59mm
R.I. >95%
C.R.A. <7°
DIMENSION Φ17.4*20.74mm
LENS CONTRUCTURE 8G+IR(650nm)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
