1/2.7" 2.4mm 5Megapixel F2.6 M12x0.5 mount low-distortion Board Lens for OV2710/AR0330/OV4689

CCOM Electronics Technology Co., Ltd.
Contact Now

1/2.7" 2.4mm 5Megapixel F2.6 M12x0.5 mount low-distortion Board Lens for OV2710/AR0330/OV4689

  • 1
  • 2
  • 3

Place of Origin : China

Model Number : 127024MPF

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

MOQ : 100pcs

Board Lens : M12 Mount Low-distortion Lens

Resolution : 5MP

Distortion : <-6.5%

Constructure : 4G2P+IR

Contact Now

1/2.7" 2.4mm 5MP F2.6 M12x0.5 mount 113degree wide angle low-distortion Board Lens for OV2710/AR0330/OV4689

MODEL 127024MPF
SENSOR SIZE 1/2.7" OV2710 & 1/3" AR0330 & 1/3" OV4689
MAX IMAGE CIRCLE Φ6.8mm
FOCAL LENGTH(EFL) 2.4mm
F.O.V. (D*H*V) OV2710: 113.5°*103.5°*68°; AR0330: 107.5°*94.6°*70°; OV4689: 109°*99°*64.5°
RESOLUTION 5MP
APERTURE F2.6
OPTICAL DISTORTION <-6.5%
MOUNT M12X0.5
B.F.L.(O) 4.54mm
B.F.L.(M) 3.38mm
T.T.L. 23mm
DIMENSION Φ14x19.62mm
LENS CONSTRUCTURE 4G2P+IR
RELATIVE ILLUMINATION AR0330: >.7%; OV2710: >65.8%, OV4689: >69.9%
CRA OV2710: <14.56°; AR0330: <13.5°; OV4689: <13.76°
IR COATING 640+/-8NM AT:50%

Tips:

- ***MP: without IR-Cut filter

- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com


Product Tags:

megipixel lens



Non-distortion lens



M12x0.5 Board Lens


Wholesale 1/2.7&quot; 2.4mm 5Megapixel F2.6 M12x0.5 mount low-distortion Board Lens for OV2710/AR0330/OV4689 from china suppliers

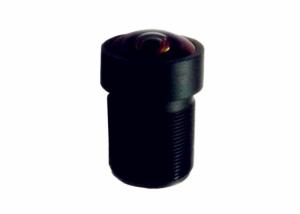

1/2.7" 2.4mm 5Megapixel F2.6 M12x0.5 mount low-distortion Board Lens for OV2710/AR0330/OV4689 Images
