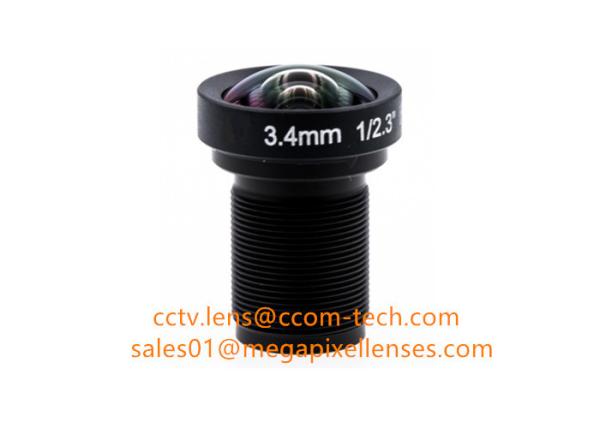

1/2.3" 3.4mm F2.8 16MP M12x0.5 mount non-distortion lens, megapixel low distortion lens for Gopro

Name: 123quot 34mm F28 16MP M12x05 mount nondistortion lens megapixel low distortion lens for Gopro
Brand: CCOM LENS
Price: 1 USD

Wholesale 1/2.3" 3.4mm F2.8 16MP M12x0.5 mount non-distortion lens, megapixel low distortion lens for Gopro from china suppliers

Brand Name : CCOM LENS

Model Number : 123034MPF

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Western Union, Moneygram, Paypal

Supply Ability : Samples available

Delivery Time : 2-7 work days

Packaging Details : Standard

Board Lens : M12 Mount Low-distortion Lens

Resolution : 16MP

Distortion : <1%

Constructure : 5G+2MG+IR CUT

Contact Now

1/2.3" 3.4mm F2.8 16Megapixel S Mount M12x0.5 mount Low-Distortion Board Lens for aerial cameras DJI Phantom Typhoon H Drones Camera, 3.4mm 16MP non-distortion lens for Gopro 4/ Gopro 5

MODEL 123034MPF
SENSOR SIZE 1/2.3”
FOCAL LENGTH(EFL) 3.4mm
F.O.V.(DxHxV) 99°x85°x69°
RESOLUTION 16MP
APERTURE F2.8
TV DISTORTION 1%
MOUNT M12xP0.5
B.F.L. 5.93mm
F.B.L. 1.72mm
T.T.L. 24.00mm
LENS CONSTRUCTURE 5G+2MG+IR-CUT
IR CUT T=50%@650±10nm
DIMENSION Φ17*22.28mm

Tips:

- ***MP: without IR-Cut filter

- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com

1/2.3" 3.4mm F2.8 16MP M12x0.5 mount non-distortion lens, megapixel low distortion lens for Gopro Images
