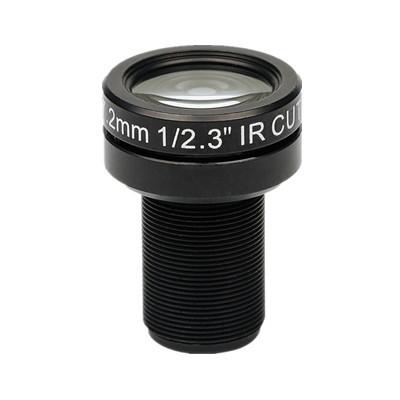

1/2.3" 7.2mm 10Megapixel F2.4 M12x0.5 Mount Non-Distortion IR Board Lens for MT9J003, Drone Lens

Name: 123quot 72mm 10Megapixel F24 M12x05 Mount NonDistortion IR Board Lens for MT9J003 Drone Lens
Brand: CCOM LENS
Price: 1 USD

Wholesale 1/2.3" 7.2mm 10Megapixel F2.4 M12x0.5 Mount Non-Distortion IR Board Lens for MT9J003, Drone Lens from china suppliers

Place of Origin : China

Model Number : 12307224MP 12307224MPF

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

MOQ : 100pcs

Board Lens : M12 Mount Low-distortion Lens

Resolution : 10MP

Distortion : <-1.5%

Lens Constructure : 10G/10G+IR

Contact Now

Non distortion Lens

● High definition <2% low distortion lens
● High resolution compatible with 1.3-10 Mega-pixel cameras
● Broad band confocal design suitable for both Visible and NIR applications
● Compact design ideal for integration
● Cost-effective for recognition applications

1/2.3" 7.2mm 10Megapixel F2.4 M12*0.5 Mount S-Mount Non-Distortion IR Board Lens, UAV Drone lens, Gopro replaced lens, Lens for MT9J003

Model: 12307224MP
Image Format 1/2.3″ (MT9J003)
Focal Length 7.2mm
Aperture F2.4
Resolution 10MP
Horizontal Angle of View 47°
Distortion -1.5%
CRA 6.7°
Mount Type M12*0.5
Minimum Object Distance 0.3m
Back Focal Length 7.23mm
Iris Fixed
Lens Constructure 10-8
External Dimensions(mm) Φ19(D)*26.14(L)

Tips:
- 12307224MP: without IR-Cut filter
- 12307224MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS mount available

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
