1/2.5" 7.3mm 5Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm non-distortion lens for scanner

Name: 125quot 73mm 5Megapixel M12x05 S Mount NonDistortion Board Lens 73 mm nondistortion lens for scanner
Brand: CCOM LENS
Price: 1 USD

Wholesale 1/2.5" 7.3mm 5Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm non-distortion lens for scanner from china suppliers

Place of Origin : China

Model Number : 125073MP 125073MPF

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

MOQ : 100pcs

Board Lens : M12 Mount Low-distortion Lens

Resolution : 5MP

Distortion : <-1%

Lens Constructure : 4P/4P+IR

Contact Now

1/2.5" 7.3mm F2.6 5Megapixel M12x0.5 S-mount non-distortion lens for scanners/HD cameras, 7.3mm 5MP lens for MI5100

Model: 125073MPF
SENSOR FORMAT 1/2.5"
MAX IMAGE CIRCLE Φ8.2mm
FOCAL LENGTH(EFL) 7.3mm
F.O.V.: 70° (Φ7.35mm)
RESOLUTION 5MP
APERTURE F2.6
OPTICAL DISTORTION <-1%
MOUNT M12X0.5
F.B.L.: 2.1mm
T.T.L. 10.6mm
LENS CONSTRUCTURE 4P+IR
RELATIVE ILLUMINATION >65%
IR COATING 645+/-10NM AT:50%
CHIEF RAT ANGLE <25°

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

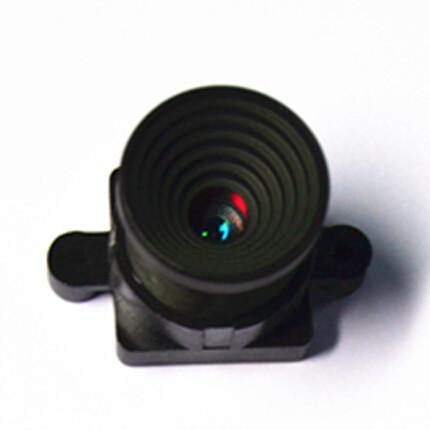

1/2.5" 7.3mm 5Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm non-distortion lens for scanner Images
